Swing添加水平滚动条示例

下面的示例展示如何在Java Swing应用程序中的Panel上始终显示带有水平条的滚动窗格。

使用以下API -

• JScrollPane(Component view)- 在组件上创建scrollPane。
• JScrollPane.setHorizontalScrollBarPolicy(JScrollPane.HORIZONTAL_SCROLLBAR_ALWAYS)- 始终显示水平条。

示例

package com.zaixian.swingdemo;

import java.awt.FlowLayout;
import java.awt.GridLayout;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;

import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;

public class SwingTester {
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingTester(){
      prepareGUI();
   }
   public static void main(String[] args){
      SwingTester  swingControlDemo = new SwingTester();
      swingControlDemo.showScrollPaneDemo();
   }
   private void prepareGUI(){
      mainFrame = new JFrame("Swing添加水平滚动条示例");
      mainFrame.setSize(400,400);
      mainFrame.setLayout(new GridLayout(3, 1));

      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      headerLabel = new JLabel("", JLabel.CENTER);
      statusLabel = new JLabel("",JLabel.CENTER);
      statusLabel.setSize(350,100);

      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }

   private JTextArea outputTextArea;

   private void showScrollPaneDemo(){
      headerLabel.setText("Control in action: ScrollPane");
      outputTextArea = new JTextArea("",5,20);
      JScrollPane scrollPane = new JScrollPane(outputTextArea);
      scrollPane.setHorizontalScrollBarPolicy(JScrollPane.HORIZONTAL_SCROLLBAR_ALWAYS);
      controlPanel.add(scrollPane);
      mainFrame.setVisible(true);
   }
}

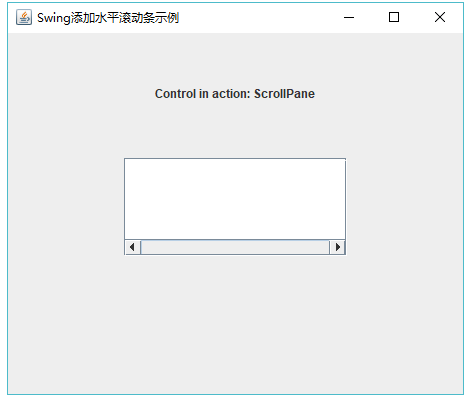

执行上面示例代码，得到以下结果：
