Swing中使用边框？

下面的示例展示了如何在Java Swing应用程序中使用边框。

使用以下API -

• BorderFactory.createLineBorder() - 创建线条边框。
• BorderFactory.createEtchedBorder() - 创建蚀刻边框。
• BorderFactory.createEmptyBorder() - 创建空边框。
• JPanel.setBorder(border) - 为JPanel设置所需的边框。

示例

package com.zaixian.swingdemo;


import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.FlowLayout;
import java.awt.LayoutManager;

import javax.swing.BorderFactory;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.border.Border;
import javax.swing.border.EtchedBorder;

public class UsingBorders {
   public static void main(String[] args) {
      createWindow();
   }

   private static void createWindow() {
      JFrame frame = new JFrame("Swing使用边框示例(xuhuhu.com)");
      frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

      createUI(frame);
      frame.setSize(560, 200);
      frame.setLocationRelativeTo(null);
      frame.setVisible(true);
   }

   private static void createUI(JFrame frame){
      Border blackline = BorderFactory.createLineBorder(Color.red);
      Border raisedetched = BorderFactory.createEtchedBorder(EtchedBorder.RAISED);
      Border loweredetched = BorderFactory.createEtchedBorder(EtchedBorder.LOWERED);
      Border raisedbevel  = BorderFactory.createEtchedBorder(EtchedBorder.LOWERED);
      Border loweredbevel = BorderFactory.createEtchedBorder(EtchedBorder.LOWERED);
      Border empty = BorderFactory.createEmptyBorder();

      JPanel panel = new JPanel();
      LayoutManager layout = new FlowLayout();
      panel.setLayout(layout);

      JPanel panel1 = new JPanel();
      panel1.add(new JLabel("红色边框"));
      panel1.setBorder(blackline);

      JPanel panel2 = new JPanel();
      panel2.add(new JLabel("边框凸起"));
      panel2.setBorder(raisedetched);

      JPanel panel3 = new JPanel();
      panel3.add(new JLabel("边框凹下"));
      panel3.setBorder(loweredetched);

      JPanel panel4 = new JPanel();
      panel4.add(new JLabel("凸起的斜面边框"));
      panel4.setBorder(raisedbevel);

      JPanel panel5 = new JPanel();
      panel5.add(new JLabel("降低斜面边框"));
      panel5.setBorder(loweredbevel);

      JPanel panel6 = new JPanel();
      panel6.add(new JLabel("空边框"));
      panel6.setBorder(empty);

      panel.add(panel1);
      panel.add(panel2);
      panel.add(panel3);
      panel.add(panel4);
      panel.add(panel5);
      panel.add(panel6);

      frame.getContentPane().add(panel, BorderLayout.CENTER);
   }
}

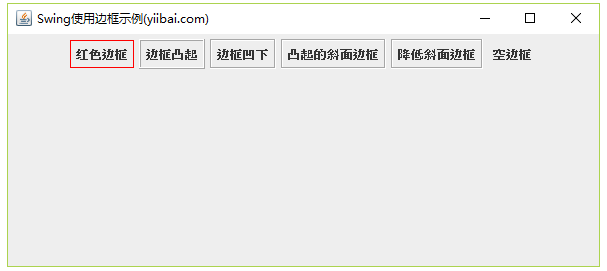

执行上面示例代码，得到以下结果：
